Hermelock
Circular Solid Top Composite Access Cover & Frame
About Us ACO Group of Companies
Local Sales Support
Home
      1300 765 226 (AUS)   0800 448 080 (NZ)   + 61 2 4747 4000 (Export)   Contact ACO Online


Load BLoad D*

* B125kN, D400kN – EN124 is equivalent to C150kN, E400kN – AS3996

Circular solid top access covers are for 600mm & 700mm diameter clear openings.

Hemelock covers are single part covers manufactured from a resin composite. The covers are lighter than traditional cast iron covers, are locked down with unique twist action bolts and offer excellent chemical resistance particularly for petrochemical applications.

Hemelock access covers are tested to class B and class D loads (EN124)* and a special lifting key to fit the central lifting boss is available, please inquire.

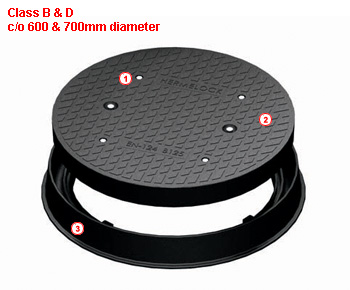

Hermelock circular

1 4 bolts per cover

2 Composite cover with anti-slip surface

3 Glass reinforced composite frame with double hermetic seal

Product Table

 Type

Part
No.

Clear Opening
W x L (mm)

Overall
W x L (mm)

Overall
Depth (mm)

Cover
Wgt (kg)

Overall
Wgt (kg)

Decorative
Edging*

Bolt
Options**
class B Class B - EN 124 - 125kN
HE700RC

81791

600

830

90

17.0

23.0

n/a

n/a
class D Class D - EN 124 - 400kN
HE700RE
HE800RE

81808
81815
600
700
780
880
120
120
37.0
48.0
46.0
58.0
n/a
n/a
n/a
n/a

* Decorative edging - not available with Hermelock covers.
** Hermelock covers have a twist action locking system - other bolt options are not available.
