Rhinocast 2 Part Recessed
Ductile Iron Access Cover & Frame
About Us ACO Group of Companies
Local Sales Support
Home
      1300 765 226 (AUS)   0800 448 080 (NZ)   + 61 2 4747 4000 (Export)   Contact ACO Online



load Bload C
load D load G


2 – part recessed access covers combine two standard size covers in a single run. They are used when a single part cover does not offer a large enough clear opening or if smaller individual covers are required for easier lifting.

Common applications include grease traps/ arrestors, access to underground stormwater/sewer systems, electricity and communications enclosures, valves and junction boxes.

These systems are designed and manufactured in full compliance with the requirements of AS 3996 Metal Access Covers and Grates.

2 – part solid top access covers are also available. Contact ACO
circular solid top

Certified Product AS3996

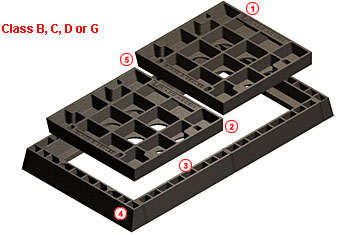

1. Decorative edging will add 12mm or 40mm to overall height to allow for tiles or brick pavers

2. Undercut/drawcut overlap seals and supports the covers at the join without the need for crossbars

3. ‘T’ Frame for class B & C, and cellular frames for class D & G are machined to fit cover precisely.

4. Frame fits around both covers without the need for additional support; the undercut/drawcut profile supports covers across the middle

5 Provided widths and loading are the same, any standard covers can be combined to create 2 – part units

2 part recessed ductile iron access cover & frame

Product Table

  Type

Part
No.

Clear Opening
W x L (mm)

Overall
W x L (mm)

Overall
Depth (mm)

Cover
Wgt (kg)

Overall
Wgt (kg)

Decorative
Edging*

Locking
Option**
class B Class B - AS 3996 - 80kN
  DI249B
  DI2412B
  DI269B
  DI2610B
  DI2612B
  DI2613B
  DI2615B
  DI2712B
  DI2713B
  DI2715B
  DI299B
  DI2910B
  DI2912B
  DI2915B
  DI2916B

85418
85433
85444
85459
85465
85426
85555
85477
85482
85499
85159
85510
85503
85524
85531

    450 x 945
    450 x 1245
    600 x 945
    600 x 1095
    600 x 1245
    600 x 1395
    600 x 1545
    750 x 1245
    750 x 1395
    750 x 1545
    900 x 945
    900 x 1095
    900 x 1245
    900 x 1545
    900 x 1695

600 x 1055
600 x 1355
750 x 1055
750 x 1205
750 x 1355
750 x 1505
750 x 1655
900 x 1355
900 x 1505
900 x 1655
1050 x 1055
1050 x 1205
1050 x 1355
1050 x 1655
1050 x 1805

55
55
55
55
55
55
55
55
55
55
55
55
55
55
55

22.0/22.0
30.0/30.0
28.0/28.0
28.0/36.0
36.0/36.0
36.0/43.0
43.0/43.0
44.0/44.0
44.0/60.0
60.0/60.0
45.0/45.0
45.0/57.0
57.0/57.0
71.0/71.0
71.0/86.0

83.0
100.0
98.0
105.0
110.0
123.0
132.0
132.0
152.0
172.0
142.0
153.0
166.0
198.0
213.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
class C Class C - AS 3996 - 150kN
  DI249C
  DI2612C
  DI2912C
  DI918C

142355
142356
142357
142358

450 x 955
600 x 1255
900 x 1255
900 x 1855

630 x 1124
780 x 1424
1080 x 1424
1080 x 2024

85
85
85
85

30/30
56/56
75/75
102/102

112.0
176.0
225.0
299.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
class B Class D - AS 3996 - 210kN
  DI249D
  DI2412D
  DI269D
  DI2611D
  DI2612D
  DI2614D
  DI2615D
  DI2712D
  DI2714D
  DI2715D
  DI299D
  DI2911D
  DI2912D
  DI2914D
  DI2915D
  DI2918D

89415
89431
89448
89456
89463
89542
89556
89474
89489
89495
89162
89422
89507
89512
89529
89533

    450 x 970
    450 x 1270
    600 x 970
    600 x 1120
    600 x 1270
    600 x 1420
    600 x 1570
    750 x 1270
    750 x 1420
    750 x 1570
    900 x 970
    900 x 1120
    900 x 1270
    900 x 1420
    900 x 1570
    900 x 1870

665 x 1185
665 x 1485
815 x 1185
815 x 1335
815 x 1485
815 x 1635
815 x 1785
965 x 1485
965 x 1635
965 x 1785
1115 x 1185
1115 x 1335
1115 x 1485
1115 x 1635
1115 x 1785
1115 x 2085

100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100

42.0/42.0
51.0/51.0
51.0/51.0
51.0/62.0
62.0/62.0
62.0/74.0
74.0/74.0
77.0/77.0
77.0/92.0
92.0/92.0
72.0/72.0
72.0/88.0
88.0/88.0
88.0/106.0
106.0/106.0
136.0/136.0

148.0
178.0
173.0
189.0
205.0
223.0
241.0
237.0
261.0
282.0
224.0
245.0
266.0
290.0
314.0
382.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
class B Class G - AS 3996 -900kN
  DI249G
  DI649G
  DI2611G
  DI2612G
  DI2715G
  DI299G
  DI2911G
  DI2912G

87415
87448
87456
87463
87450
87568
87507
87512

    450 x 990
    600 x 990
    600 x 1140
    600 x 1290
    750 x 1590
    900 x 990
    900 x 1140
    900 x 1290

685 x 1225
835 x 1225
835 x 1375
835 x 1525
985 x 1825
1135 x 1225
1135 x 1375
1135 x 1525

125
125
125
125
125
125
125
125

86.0/86.0
104.0/104.0
104.0/135.0
135.0/135.0
200.0/200.0
145.0/145.0
145.0/180.0
180.0/180.0

266.0
205.0
341.0
377.0
553.0
433.0
446.0
508.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB


* Decorative Brass (BE) or Stainless Steel (SS) edging can be added - just specify BE or SS and height (12mm or 40mm)
   after part no.
** Optional locking bolts are available for security or back pressure applications - specify standard bolts (LD) or Barri bolts
   (BB) after part no.

Note. Rhinocast access covers can be lifted with an AS3996 lifting key
