Rhinocast 3 Part Recessed
Ductile Iron Access Cover & Frame
About Us ACO Group of Companies
Local Sales Support
Home
      1300 765 226 (AUS)   0800 448 080 (NZ)   + 61 2 4747 4000 (Export)   Contact ACO Online



load Bload C
load D load G


3 – part recessed access covers combine three standard size covers in a single run. They are used when a single part cover does not offer a large enough clear opening or when continuous access is required.

Common applications include grease traps/ arrestors, access to underground stormwater/sewer systems, electricity and communications enclosures where access along the entire run is needed. All covers can be removed for full uninterrupted access or single covers can provide access to specific areas. Systems are available to suit 550, 1000 and 2000 litre grease traps.

These systems are designed and manufactured in full compliance with the requirements of AS 3996 Metal Access Covers and Grates

3 – part solid top access covers are also available. Contact ACO
circular solid top

Certified Product AS3996

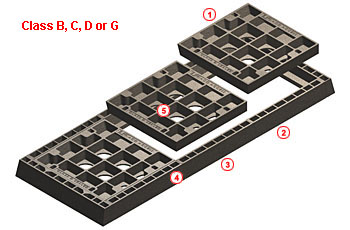

1. Decorative edging will add 12mm or 40mm to overall height to allow for tiles or brick pavers

2. Undercut/drawcut overlap seals and supports the covers at the join without the need for crossbars

3. ‘T’ Frame for class B & C, and cellular frames for class D & G are machined to fit cover precisely.

4. Frame fits around both covers without the need for additional support; the undercut/drawcut profile supports covers across the middle

5 Provided widths and loading are the same any standard covers can be combined to create 3 – part units

3 part recessed ductile iron access cover & frame

Product Table

  Type

Part
No.

Clear Opening
W x L (mm)

Overall
W x L (mm)

Overall
Depth (mm)

Cover
Wgt (kg)

Overall
Wgt (kg)

Decorative
Edging*

Locking
Option**
class B Class B - AS 3996 - 80kN
  DI3414B
  DI3614B
  DI3615B
  DI3617B
  DI3618B
  DI3620B
  DI3621B
  DI3623B
  DI3723B
  DI3914B
  DI3915B
  DI3917B
  DI3918B
  DI3923B

85614
85645
85740
85652
85666
85758
85627
85638
85700
85673
85689
85717
85725
85732

450 x 1440
600 x 1440
600 x 1590
600 x 1740
600 x 1890
600 x 2040
600 x 2190
600 x 2340
750 x 2340
900 x 1440
900 x 1590
900 x 1740
900 x 1890
900 x 2340

600 x 1550
750 x 1550
750 x 1700
750 x 1850
750 x 2000
750 x 2150
750 x 2300
750 x 2450
900 x 2450
1050 x 1550
1050 x 1700
1050 x 1850
1050 x 2000
1050 x 2450

55
55
55
55
55
55
55
55
55
55
55
55
55
55

22/22/22
28/28/28
28/28/36
36/36/28
36/36/36
36/36/43
36/43/43
43/43/43
60/60/60
45/45/45
45/45/57
45/57/57
57/57/57
71/71/71

119.0
140.0
148.0
157.0
165.0
172.0
187.0
190.0
250.0
206.0
218.0
231.0
243.0
289.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
class C Class C - AS 3996 - 150kN
  DI3414C
  DI3619C
  DI3919C
  DI3928C

142359
142360
142361
142362

450 x 1460
600 x 1910
900 x 1910
900 x 2810

630 x 1629
780 x 2079
1080 x 2079
1080 x 2979

85
85
85
85

30/30/30
56/56/56
75/75/75
102/102/102

161
254
327
438

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
class B Class D - AS 3996 - 210kN
  DI3414D
  DI3614D
  DI3616D
  DI3617D
  DI3619D
  DI3620D
  DI3622D
  DI3623D
  DI3723D
  DI3914D
  DI3916D
  DI3917D
  DI3919D
  DI3923D

89618
89653
89665
89674
89680
89625
89632
89646
89712
89720
89738
89746
89753
89764

450 x 1490
600 x 1490
600 x 1640
600 x 1790
600 x 1940
600 x 2090
600 x 2240
600 x 2390
750 x 2390
900 x 1490
900 x 1640
900 x 1790
900 x 1940
900 x 2390

665 x 1705
815 x 1705
815 x 1855
815 x 2005
815 x 2155
815 x 2305
815 x 2455
815 x 2605
965 x 2605
1115 x 1705
1115 x 1855
1115 x 2005
1115 x 2155
1115 x 2605

100
100
100
100
100
100
100
100
100
100
100
100
100
100

42/42/42
51/51/51
51/51/62
62/62/51
62/62/62
62/62/74
74/74/62
74/74/74
92/92/92
72/72/72
72/72/88
72/88/88
88/88/88
106/106/106

219.0
252.0
283.0
299.0
300.0
322.0
330.0
342.0
411.0
352.0
368.0
394.0
405.0
465.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
class B Class G - AS 3996 -900kN
  DI3414G
  DI3614G
  DI3616G
  DI3617G
  DI3619G
  DI3623G
  DI3914G
  DI3916G
  DI3917G
  DI3919G

87613
87658
87665
87672
87686
87693
87709
87714
87720
87737

450 x 1530
600 x 1530
600 x 1680
600 x 1830
600 x 1980
750 x 2430
900 x 1530
900 x 1680
900 x 1830
900 x 1980

686 x 1765
836 x 1765
836 x 1915
836 x 2065
836 x 2215
986 x 2665
1136 x 1765
1136 x 1915
1136 x 2065
1136 x 2215

125
125
125
125
125
125
125
125
125
125

86/86/86
104/104/104
104/104/135
104/135/135
135/135/135
200/200/200
145/145/145
145/145/180
145/180/180
180/180/180

393.0
456.0
505.0
523.0
554.0
807.0
636.0
671.0
711.0
746.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB


* Decorative Brass (BE) or Stainless Steel (SS) edging can be added - just specify BE or SS and height (12mm or 40mm)
   after part no.
** Optional locking bolts are available for security or back pressure applications - specify standard bolts (LD) or Barri bolts
   (BB) after part no.

Note. Rhinocast access covers can be lifted with an AS3996 lifting key
