Rhinocast Square & Rectangular Recessed
Ductile Iron Access Cover & Frame
About Us ACO Group of Companies
Local Sales Support
Home
      1300 765 226 (AUS)   0800 448 080 (NZ)   + 61 2 4747 4000 (Export)   Contact ACO Online



load BLoad C load D


Single part square and rectangular recessed access covers come with pockets and therefore can be filled onsite with concrete or any other suitable pavement material.

Available for both class B, C and class D loads (AS 3996), they can be used to provide access to underground stormwater/sewer systems, electricity and communications enclosures, grease traps valves and junction boxes.

These systems are designed and manufactured in full compliance with the requirements of AS 3996 Metal Access Covers and Grates.

Certified Product AS3996

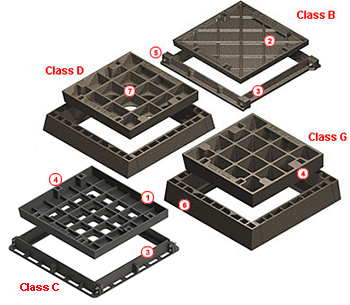

2. Jacking pads for lifting cover


2. Cellular frame for improved anchorage in the surrounding concrete

2. Strengthening ribs are flush with the top of the cover and frame and will show through infill material.

1. Decorative edging will add 12mm or 40mm to overall height to allow for tiles or brick pavers. For Class C access cover, If tiles are used or pavers less than 40mm thick. No decorative edging is required

2. Unique diagonal recessed reinforcing bars will not show through infill material

2. ‘T’ Frame machined to fit cover precisely

2. Optional locking bolt positions

Product Table

  Type

Part
No.

Clear Opening
W x L (mm)

Overall
W x L (mm)

Overall
Depth (mm)

Cover
Wgt (kg)

Overall
Wgt (kg)

Decorative
Edging*

Locking
Option**
class B Class B - AS 3996 - 80kN
  DI44B
  DI46B
  DI64B
  DI66B
  DI67B
  DI76B
  DI77B
  DI94B
  DI96B
  DI97B
  DI99B

85014
85020
85037
85045
85125
85052
85061
85119
85078
85086
85093

450 x 450
450 x 600
600 x 450
600 x 600
600 x 750
750 x 600
750 x 750
900 x 450
900 x 600
900 x 750
900 x 900

  600 x 560
  600 x 710
  750 x 560
  750 x 710
  750 x 860
  900 x 710
  900 x 860
1050 x 560
1050 x 710
1050 x 860
1050 x 1010

55
55
55
55
55
55
55
55
55
55
55

28.0
30.0
28.0
36.0
43.0
44.0
60.0
45.0
57.0
71.0
86.0

47.0
56.0
54.0
63.0
74.0
74.0
94.0
76.0
89.0
109.0
124.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
space
space
class C Class C - AS 3996 - 150kN
space
  DI44C
  DI66C
  DI96C
  DI99C

142313
142314
142315
142316

450 x 450
600 x 600
900 x 600
900 x 900

630 x 619
780 x 769
1080 x 769
1080 x 1069

85
85
85
85

30.0
56.0
75.0
102.0

63.0
98.0
123.0
160.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
class B Class D - AS 3996 - 210kN
  DI44D
  DI46D
  DI64D
  DI66D
  DI67D
  DI76D
  DI77D
  DI94D
  DI96D
  DI97D
  DI99D

89013
89020
89034
89041
89137
89058
89065
89124
89072
89086
89093

450 x 450
450 x 600
600 x 450
600 x 600
600 x 750
750 x 600
750 x 750
900 x 450
900 x 600
900 x 750
900 x 900

  665 x 665
  665 x 815
  815 x 665
  815 x 815
  815 x 965
  965 x 815
  965 x 965
1115 x 665
1115 x 815
1115 x 965
1115 x 1115

100
100
100
100
100
100
100
100
100
100
100

42.0
51.0
51.0
62.0
74.0
77.0
92.0
72.0
88.0
106.0
136.0

85.0
100.0
100.0
116.0
134.0
136.0
157.0
130.0
151.0
175.0
209.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
class B Class G - AS 3996 -900kN
  DI44G
  DI64G
  DI66G
  DI77G
  DI94G
  DI96G

87016
87039
87044
87067
87082
87075

450 x 450
600 x 450
600 x 600
750 x 750
900 x 450
900 x 600

685 x 685
835 x 685
835 x 835
985 x 985
1135 x 685
1135 x 835

125
125
125
125
125
125

86.0
104.0
135.0
200.0
145.0
180.0

149.0
170.0
206.0
251.0
230.0
270.0

BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40
BE/SS - 12/40

LD/BB
LD/BB
LD/BB
LD/BB
LD/BB
LD/BB


* Decorative Brass (BE) or Stainless Steel (SS) edging can be added - just specify BE or SS and height (12mm or 40mm)
   after part no.
** Optional locking bolts are available for security or back pressure applications - specify standard bolts (LD) or Barri bolts
   (BB) after part no.

Note. Rhinocast access covers can be lifted with an AS3996 lifting key
