Rhinocast Square & Rectangular Solid Top
Ductile Iron Access Cover & Frame
About Us ACO Group of Companies
Local Sales Support
Home
      1300 765 226 (AUS)   0800 448 080 (NZ)   + 61 2 4747 4000 (Export)   Contact ACO Online



load B load D


Single part square and rectangular solid top access covers come with an antislip solid surface and therefore do not need to be filled onsite.

Available for both class B and class D loads (AS3996), they can be used to provide access to underground stormwater/sewer systems, electricity and communications enclosures, grease traps valves, and junction boxes.

These systems are designed and manufactured in full compliance with the requirements of AS 3996 Metal Access Covers and Grates.

Systems are also available as 2 part, 3 part, trench and multipart systems. Contact ACO

circular solid top

Certified Product AS3996

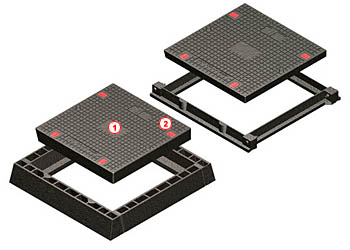

Class B

2.Hold-down bolts for added security or for back pressure applications

Class D

1. Ductile iron solid cover with square pattern

Product Table

 Type

Part
No.

Clear Opening
W x L (mm)

Overall
W x L (mm)

Overall
Depth (mm)

Cover
Wgt (kg)

Overall
Wgt (kg)

Decorative
Edging*

Locking
Option**
class B Class B - AS 3996 - 80kN
DIS44B
DIS46B
DIS64B
DIS66B
DIS74B
DIS76B
DIS77B
DIS67B
DIS94B
DIS96B

85249
85261
85236
85222
85298
85287
85274
85215
85208
85253

450 x 450
450 x 600
600 x 450
600 x 600
750 x 450
750 x 600
750 x 750
600 x 750
900 x 450
900 x 600
600 x 560
600 x 710
750 x 560
750 x 710
900 x 560
900 x 710
900 x 860
750 x 860
1050 x 560
1050 x 710
55
55
55
55
55
55
55
55
55
55
22.0
31.0
31.0
36.0
39.0
54.0
60.0
44.0
50.0
57.0
44.0
54.0
54.0
62.0
66.0
82.0
94.0
82.0
79.0
89.0
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
class B Class D - AS 3996 - 210kN
 DIS44D
 DIS46D
 DIS64D
 DIS66D
 DIS67D
 DIS74D
 DIS76D
 DIS77D
 DIS94D
 DIS96D

89268
89283
89251
89235
89227
89294
89309
89315
89215
89276

450 x 450
450 x 600
600 x 450
600 x 600
600 x 750
750 x 450
750 x 600
750 x 750
900 x 450
900 x 600

660 x 660
660 x 810
810 x 660
810 x 810
810 x 960
960 x 660
960 x 810
960 x 960
1110 x 660
1110 x 810

100
100
100
100
100
100
100
100
100
100

42.0
51.0
51.0
65.0
80.0
66.0
84.0
104.0
80.0
102.0

87.0
101.0
101.0
122.0
142.0
120.0
140.0
161.0
142.0
162.0

BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40
BE/SS – 12/40

STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB
STD/BB


* Decorative Brass (BE) or Stainless Steel (SS) edging can be added - just specify BE or SS and height (12mm or 40mm)
   after part no.
** Optional locking bolts are available for security or back pressure applications - specify standard bolts (LD) or Barri bolts
   (BB) after part no.

Note. Rhinocast access covers can be lifted with an AS3996 lifting key
