Urbanfil 2 Part Galvanised Steel Recessed
Lock and Seal Cover and Frame
About Us ACO Group of Companies
Local Sales Support
Home
      1300 765 226 (AUS)   0800 448 080 (NZ)   + 61 2 4747 4000 (Export)   Contact ACO Online


Load Class B

2 – part  access covers combine two standard size covers in a single run. They are used where a single part cover does not offer a large enough clear opening or if smaller individual covers are required for easier lifting.

Common applications include grease traps/arrestors, electricity and communications enclosures, valves and junction boxes.

Available for up to class B (AS3996), Urbanfil access covers are ideal for light duty applications where the designer would like to preserve the visual continuity of tiles, concrete, synthetic turf and other pavement/floor toppings.  For internal applications, an optional decorative edge is offered for enhanced aesthetics.

Urbanfil access covers require a minimum depth of 45mm of concrete underlying the desired topping. Alternatively, the cover may be filled to the top with cement concrete.

For tiled finishes, tiles should be fully restrained and bonded to the concrete bed to prevent damage to the cover – an epoxy mortar is recommended.

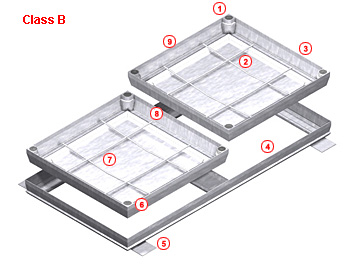

9 Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 – part units

polyurethane seal
8 Polyethylene seal provides a water and gas seal without the need for grease.

7 Cover depth allows for sufficient bedding concrete.

6 Solid base cover for easy installation of infill materials

Urbanfil 2 part

concrete anchors
5 Concrete anchors on all frames provide excellent fixing into surrounding concrete

4 2mm thick galvanised steel angle frame to fit around both covers with removable cross bar to support covers and provide a seal and locking bar for centre corners, also acts as a guide for correct positioning. Covers are removable in all 4 directions

1. 4 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress.

reinforcing bars
2 12mm reinforcing bars on class B covers.

brass decorative edge
3 Optional brass decorative edge around frame and cover edges.



Product Table

 Type

Part
No.

Clear Opening
W x L (mm)

Overall
W x L (mm)

Overall
Depth (mm)

Cover
Wgt (kg)

Overall
Wgt (kg)

Decorative
Edging*

Locking
Option**
class B Class B - AS 3996 - 80kN
GS2410C
GS2411C
GS2413C
GS2610C
GS2611C
GS2613C
GS2614C
GS2616C
GS2617C
GS2619C
GS2713C
GS2714C
GS2716C
GS2913C

82521
82540
82567
82585
82606
82628
82640
82665
82681
82706
82724
82745
82762
82783

450 x 1020
450 x 1170
450 x 1320
600 x 1020
600 x 1170
600 x 1320
600 x 1470
600 x 1620
600 x 1770
600 x 1920
750 x 1320
750 x 1470
750 x 1620
900 x 1320

580 x 1150
580 x 1300
580 x 1450
730 x 1150
730 x 1300
730 x 1450
730 x 1600
730 x 1750
730 x 1900
730 x 2050
880 x 1450
880 x 1600
880 x 1750
1030 x 1450

85
85
85
85
85
85
85
85
85
85
85
85
85
85

7.1/7.1
7.1/10.7
13.2/13.2
13.2/13.2
13.2/15.7
15.7/15.7
15.7/18.6
18.6/18.6
18.6/20.9
20.9/20.9
18.6/18.6
18.6/21.6
21.6/21.6
20.9/20.9

33.0
36.1
39.2
39.2
39.9
45.5
49.1
52.0
55.6
58.6
52.7
56.3
59.9
58.7

BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE

BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB


* Decorative Brass (BE) can be added - just specify BE.  Stainless Steel covers are also available contact ACO
** Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.

Note. Urbanfil access covers can be lifted with an AS3996 lifting key
