Urbanfil® - Tilemate (shallow pan access covers)

australian madeA range of standard depth steel recessed cover & frame systems for use with tiles, concrete and epoxy floors

Tilemate is available in single part, 2 part, 3 part, trench run and multipart configurations up to class B80kN (AS 3996).

The range comprises square and rectangular infill access covers manufactured from hot dip galvanised steel. The steel base is fitted with reinforcing bars to provide flexural strength with concrete poured in situ.

Brass edging is an option for aesthetic applications.

Important note: To accommodate tiles, covers have an overall pan depth of 85mm (and 70mm at the frame edge). However as concrete is integral to the strength of the cover,  pavers need to be bedded with concrete to a minimum depth of 45mm.

Urbanfil® Tilemate - single part

Urbanfil Tilemate Single Part

Features & benefits

14 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress.
212mm reinforcing bars on class B covers
3Optional brass decorative edge
4Cover depth allows for sufficient bedding concrete.
5Solid base cover for easy installation of infill materials
6Polyethylene seal provides a water and gas seal without the need for grease.
7Angled 2mm thick galvanised steel angle frame allows cover removal in all 4 directions
8Concrete anchors on all frames provide excellent fixing into surrounding concrete

Urbanfil® Tilemate - two part

Urbanfil Tilemate 2 Part Access Covers

Features & benefits

14 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress.
2Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 – part units
312mm reinforcing bars on class B covers.
4Optional brass decorative edge around frame and cover edges.
5Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 – part units
62mm thick galvanised steel angle frame to fit around both covers with removable cross bar to support covers and provide a seal and locking bar for centre corners, also acts as a guide for correct positioning. Covers are removable in all 4 directions
7Cover depth allows for sufficient bedding concrete.
8 Solid base cover for easy installation of infill materials
9Concrete anchors on all frames provide excellent fixing into surrounding concrete

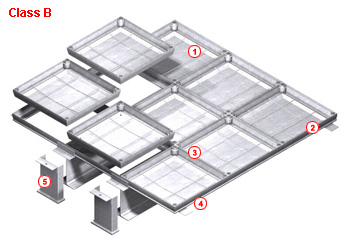

Urbanfil® Tilemate - Multipart

Features & benefits

1Covers do not need to be of the same length, provided each row has covers of the same width.
2Decorative edging can be attached around each cover and outside frame.
3Removable cross bar at joints to support covers and provide a seal and locking bar for centre corners.
4Frame fits around all covers and a removable frame support beam is used between rows
5Beam locating boxes must be cast with the pit structure

Urbanfil® Tilemate - Product details

Single part

     Class B - AS 3996 - 80kN
Type Part No. C/O1
WxL
(mm)
O/A1
WxL
(mm)
O/A1
Depth
(mm)
Cover
Wgt
(kg)
O/A1
Wgt
(kg)
Decorative
Edging2
Locking
Option3
JPG
GS24C 80150 200x450 330x580 85 8.0 13.0 BE BB JPG
GS33C 81686 300x300 430x430 85 7.1 11.9 BE BB JPG
GS36C 81225 300x600 430x730 85 11.0 16.0 BE BB JPG
GS365C 80450 350x650 480x780 85 11.0 16.0 BE BB JPG
GS44C 81520 450x450 580x580 85 10.7 16.8 BE BB JPG
GS46C 81547 450x600 580x730 85 13.2 19.9 BE BB JPG
GS66C 81565 600x600 730x730 85 15.7 23.0 BE BB JPG
GS67C 81586 600x750 730x880 85 18.6 26.7 BE BB JPG
GS69C 82018 600x900 730x1030 85 20.9 29.6 BE BB JPG
GS77C 81601 750x750 880x880 85 21.5 30.2 BE BB JPG
GS94C 81661 900x450 1030x580 85 17.6 25.7 BE BB JPG
GS99C 81645 900x900 1030x1030 85 27.6 37.5 BE BB JPG


1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE.  Stainless Steel covers are also available contact ACO
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.

Accessories
  Part No Weight (kg) JPG
Universal short lifting key 84306 0.40 JPG
Urbanfil®/Pavermate®: allen locking key 84313 0.25 JPG

Two part

     Class B - AS 3996 - 80kN
Type Part No. C/O1
WxL
(mm)
O/A1
WxL
(mm)
O/A1
Depth
(mm)
Cover
Wgt
(kg)
O/A1
Wgt
(kg)
Decorative
Edging2
Locking
Option3
JPG
GS2410C 82521 450x1020 580x1150 85 7.1/7.1 33.0 BE BB JPG
GS2411C 82540 450x1170 580x1300 85 7.1/10.7 36.1 BE BB JPG
GS2413C 82567 450x1320 580x1450 85 13.2/13.2 39.2 BE BB JPG
GS2610C 82585 600x1020 730x1150 85 13.2/13.2 39.2 BE BB JPG
GS2611C 82606 600x1170 730x1300 85 13.2/15.7 39.9 BE BB JPG
GS2613C 82628 600x1320 730x1450 85 15.7/15.7 45.5 BE BB JPG
GS2614C 82640 600x1470 730x1600 85 15.7/18.6 49.1 BE BB JPG
GS2616C 82665 600x1620 730x1750 85 18.6/18.6 52.0 BE BB JPG
GS2617C 82681 600x1770 730x1900 85 18.6/20.9 55.6 BE BB JPG
GS2619C 82706 600x1920 730x2050 85 20.9/20.9 58.6 BE BB JPG
GS2713C 82724 750x1320 880x1450 85 18.6/18.6 52.7 BE BB JPG
GS2714C 82745 750x1470 880x1600 85 18.6/21.6 56.3 BE BB JPG
GS2716C 82762 750x1620 880x1750 85 21.6/21.6 59.9 BE BB JPG
GS2913C 82783 900x1320 1030x1450 85 20.9/20.9 58.7 BE BB JPG


1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE. Stainless Steel covers are also available contact ACO
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.

Accessories
  Part No Weight (kg) JPG
Universal short lifting key 84306 0.40 JPG
Urbanfil®/Pavermate®: allen locking key 84313 0.25 JPG

Multipart

     Class B - AS 3996 - 80kN
Type Part No. C/O1
WxL
(mm)
No Parts Cover
WxL
Load Bearing Beams Req. Decorative Edging2 Locking Option3 JPG
GSMP1010B 83777 1020x1020 4-Part 2x2 1 x 150mm UC BE BB -
GSMP1313B 83782 1320x1320 4-Part 2x2 1 x 150mm UC BE BB -
GSMP1515B 83798 1590x1590 9-Part 3x3 2 x 150mm UC BE BB -
GSMP1521B 83803 1590x2160 12-P 3x4 2 x 150mm UC BE BB -
GSMP1624B 83810 1620x2490 6-Part 2x3 1 x 250mm UB BE BB -
GSMP2020B 83824 2040x2040 9-Part 3x3 2 x 150mm UC BE BB -
GSMP2424B 83831 2490x2490 9-Part 3x3 2 x 250mm UB BE BB -


1. C/O = Clear opening O/A = Overall
2. Decorative Brass (BE) can be added - just specify BE.  Stainless Steel covers are also available contact ACO
3. Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no

Accessories
  Part No Weight (kg) JPG
Universal short lifting key 84306 0.40 JPG
Urbanfil®/Pavermate®: allen locking key 84313 0.25 JPG
