Load Class B

2 – Part access covers combine two standard size covers in a single run. They are used where a single part cover does not offer a large enough clear opening or if smaller individual covers are required for easier lifting.

Available for up to class B (AS3996), Pavermate access covers are ideal for light and medium duty applications where the designer would like to preserve the visual continuity of pavers and other pavement toppings.  An optional decorative edge is offered for enhanced aesthetics.

Pavermate access covers require a minimum depth of 45mm of concrete underlying the desired topping. Alternatively, the cover may be filled to the top with cement concrete.

For brick pavements, pavers should be fully restrained and bonded to the concrete bed to prevent damage to the cover – an epoxy mortar is recommended.



polyethylene seal
8 Polyethylene seal provides a water and gas seal without the need for grease.

deep pan
7 Deep pan allows for sufficient bedding concrete beneath pavers depth allows for sufficient bedding concrete.

6 Solid base cover for easy installation of infill materials

9 Covers do not need to be the same length, if widths are the same, any standard covers can be combined to create 2 –part units

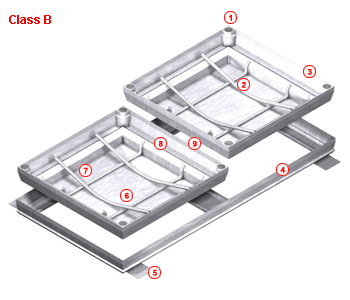

1. 4 High tensile steel M16 recessed socketed locking bolts per cover with plastic cap to protect from dirt ingress.
Urbanfil 2 part
concrete anchors
5 Concrete anchors on all frames provide excellent fixing into surrounding concrete

12mm reinforcing bars
2 12mm reinforcing bars on class B covers

3 Optional brass decorative edge around frame and cover edges

4 2mm thick galvanised steel angle frame to fit around both covers with removable cross bar to support covers and provide a seal and locking bar for centre corners, also acts as a guide for correct positioning. Covers are removable in all 4 directions

Product Table

 Type

Part
No.

Clear Opening
W x L (mm)

Overall
W x L (mm)

Overall
Depth (mm)

Cover
Wgt (kg)

Overall
Wgt (kg)

Decorative
Edging*

Locking
Option**
class B Class B - AS 3996 - 80kN
PM2410B
PM2411B
PM2413B
PM2610B
PM2611B
PM2613B
PM2614B
PM2616B
PM2617B
PM2619B
PM2713B
PM2714B
PM2716B
PM2913B

82358
82366
82373
82384
82398
82405
82417
82422
82436
82443
82450
82464
82471
82488

450 x 1020
450 x 1170
450 x 1320
600 x 1020
600 x 1170
600 x 1320
600 x 1470
600 x 1620
600 x 1770
600 x 1920
750 x 1320
750 x 1470
750 x 1620
900 x 1320

580 x 1150
580 x 1300
580 x 1450
730 x 1150
730 x 1300
730 x 1450
730 x 1600
730 x 1750
730 x 1900
730 x 2050
880 x 1450
880 x 1600
880 x 1750
1030 x 1450

135
135
135
135
135
135
135
135
135
135
135
135
135
135

11.4/11.4
11.4/12.5
12.5/12.5
12.5/12.5
12.4/14.9
14.9/14.9
14.9/17.8
17.8/17.8
17.8/20.0
20.0/20.0
17.8/17.8
17.8/20.7
20.7/20.7
17.9/17.9

33.9
35.9
37.9
39.7
39.6
39.2
44.7
50.4
57.5
56.9
51.1
54.7
58.2
55.3

BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE
BE

BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB
BB


* Decorative Brass (BE) can be added - just specify BE.  Stainless Steel covers are also available contact ACO
** Optional security locking bolts are available for security applications - specify Barri bolts (BB) after part no.

Note. Pavermate access covers can be lifted with an AS3996 lifting key
