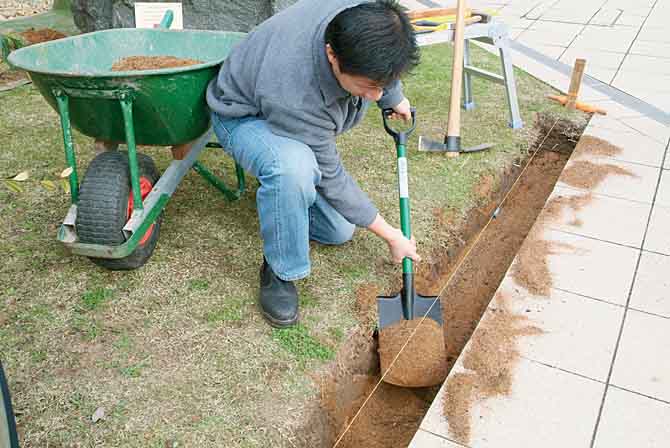

LAY A FIRM BASE - If the drain is to be trafficked by vehicles, lay a bed of good quality concrete. Otherwise, use a compacted fill along the base of the trench.

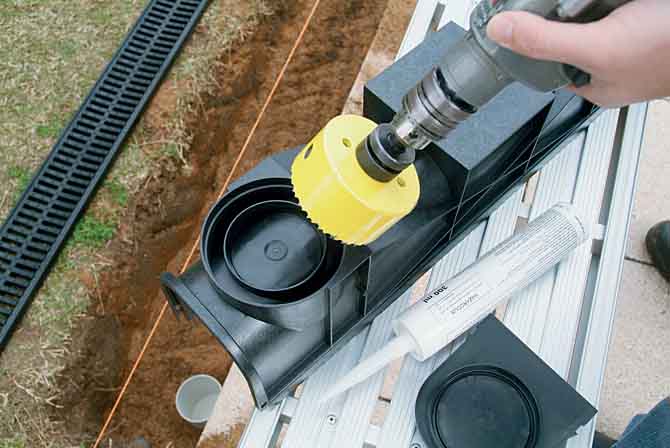

CUT THE OUTLET - Cut out the preformed outlet located in the base of the channel to allow connection to the drain pipe.
ASSEMBLE THE COMPONENTS - Connect the channels together and fit the endcaps.

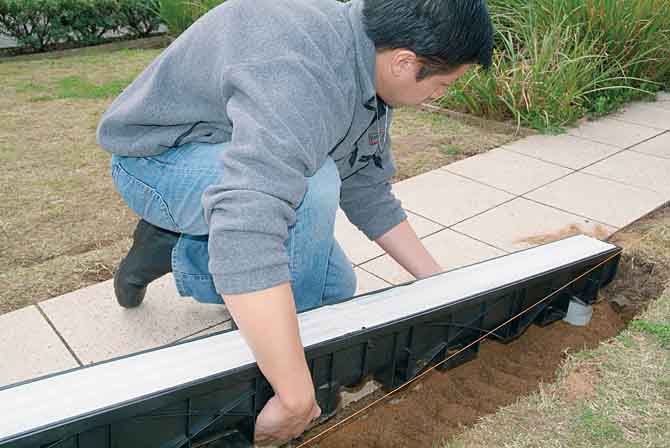

PREPARE FOR BACKFILLING - Mask along the grates over the entire run length. Lower the channel assembly, seal to the drain pipe
and pack to the correct level.

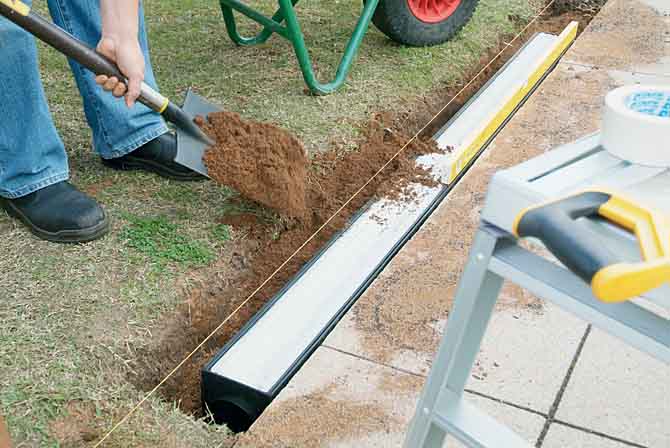

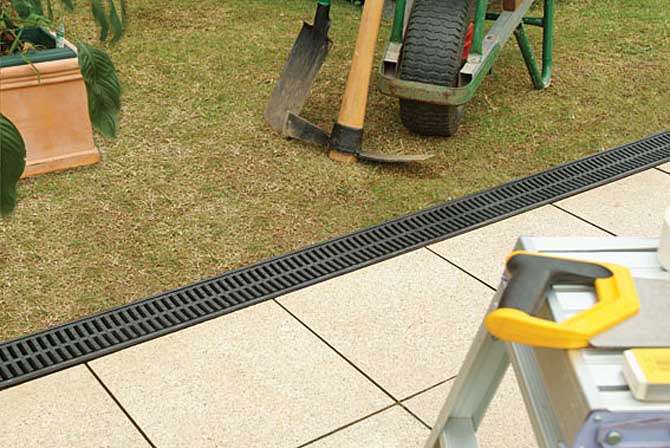

COMPLETE THE INSTALLATION - Surround the channel run with backfill or concrete. Ensure that it is finished 2-3mm above the grate. Remove all grates. Remove masking tape and debris from channels, and ensure that all outlets are clear. Replace grates
