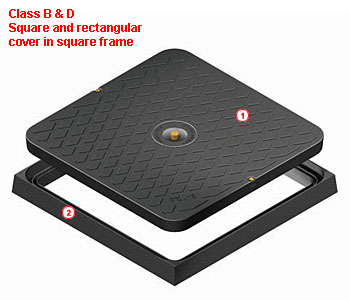

Square and circular access covers are available in square frames for ease of installation.

Hemelock® covers are single part covers manufactured from a resin composite. The covers are lighter than traditional cast iron covers, are locked down with unique twist action bolts and offer excellent chemical resistance particularly for petrochemical applications.

Hemelock® access covers are tested to class B and class D loads (EN124)* and are supplied with a special lifting key to fit the central lifting boss.

Composite cover with anti-slip surface

Glass reinforced composite frame with double hermetic seal

Product Table

Type   Part No.   Clear Opening W x L (mm)   Overall W x L (mm)   Overall Depth (mm)   Cover Wgt (kg)   Overall Wgt (kg)   Decorative Edging*   Bolt Options** Class B - EN 124 - 125kN HE33C HE44C HE55C HE66C   81756 81763 81770 81784   300 x 300 400 x 400 500 x 500 600 x 600   400 x 400 500 x 500 600 x 600 715 x 715   50 55 60 65   3.5 5.5 9.0 16.0   5.0 7.0 12.0 19.0   n/a n/a n/a n/a   n/a n/a n/a n/a Class D - EN 124 - 400kN HE88RD   81822# 700 dia 880 x 880 130 48.0 59.0 n/a n/a
